External MBR
Overall

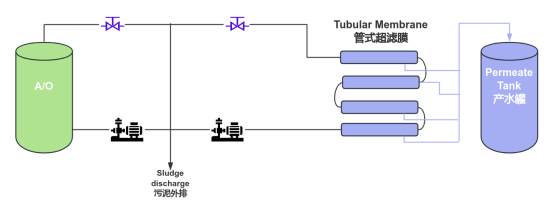

MBR is a technology that combines tubular membrane and sewage treatment. On the one hand, the tubular membrane can realize the function of mud-water separation, increase the concentration of activated sludge in the aerobic tank, and make the biochemical reaction more thorough and rapid. On the other hand, the filtration precision of the tubular membrane is high, which ensures the quality of the produced water.
Features
- Enchased side stream MBR and AnMBR (Anaerobic Membrane Bioreactor)
- Suitable for suspended solids concentration ：(MLSS) 20000-～50000 mg/L.
- Membrane flux ：(70- 120 l/m²·h).
- Small footprint
- No pre-treatment filter required
|
Operation principle |
cross flow |
Flux per module |
1.9m³/h(28m²) |
|
Operation pressure |
5bar/6module |
Chemical cleaning |
1～2month |
|
Design flux |
70LMH |
Pressure drop |
0.65~0.7bar |
|
Model |
Module quantity |
Module area (m2) |
Installed power (kw) |
Capacity （m3/h） |
Circulation pump parameters |
|
PL-G-836-P |
4 |
60 |
15 |
70 |
160m3/h,32m |
|
PL-G-836-P |
8 |
120 |
30 |
140 |
160m3/h,32m |
|
PL-G-836-P |
6 |
90 |
18.5 |
100 |
160m3/h,48m |
|
PL-G-836-P |
12 |
180 |
37 |
200 |
160m3/h,48m |
|
PL-G-838-P |
4 |
112 |
45 |
130 |
280m3/h,32m |
|
PL-G-838-P |
8 |
224 |
90 |
260 |
280m3/h,32m |
|
PL-G-838-P |
6 |
168 |
55 |
200 |
280m3/h,48m |
|
PL-G-838-P |
12 |
336 |
110 |
400 |
280m3/h,48m |
